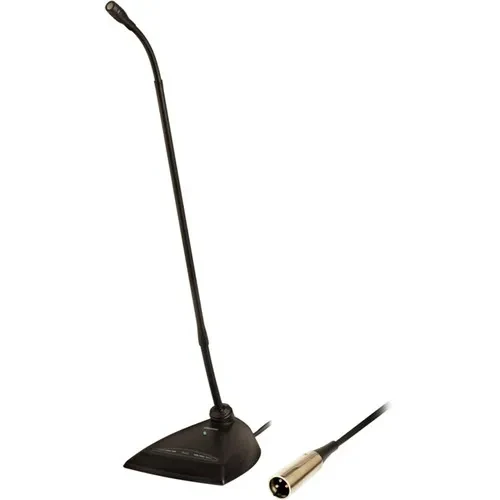

The Shure MX418D/C-X is an 18-inch cardioid gooseneck microphone designed for professional speech applications. Equipped with a sturdy desktop base, programmable on/off switch, LED indicator, and XLR output, it delivers exceptional clarity for conferences, houses of worship, boardrooms, and public speaking events.
🔧 Key Features:
-
Cardioid Polar Pattern: Captures clear speech while minimizing ambient noise from the sides and rear.
-
18-Inch Gooseneck Design: Provides flexible and precise microphone positioning.
-
Desktop Base with Programmable Switch: On/off/mute modes for adaptable use scenarios.
-
Status LED Indicator: Visual confirmation of mic status during use.
-
CommShield® Technology: Guards against RF interference from mobile devices.
-
Balanced XLR Output: Ensures professional-grade audio connection and performance.
-
Replaceable Microflex Cartridge: Allows for interchangeable polar patterns (cartridge model: MXC).
📄 Specifications:
-
Microphone Type: Electret Condenser
-
Polar Pattern: Cardioid
-
Frequency Response: 50 Hz – 17 kHz
-
Sensitivity: –35 dBV/Pa (17.8 mV)
-
Output Impedance: 180 ohms
-
Maximum SPL: 124 dB SPL
-
Signal-to-Noise Ratio: 67 dB
-
Phantom Power Requirement: 11–52 VDC
-
Gooseneck Length: 18 inches
-
Connector: XLR (10 ft cable attached)
-
Included Accessories: Desktop base, foam windscreen, pre-attached cable
📘 Instructions for Use:
-
Position the Mic: Place on a lectern, desk, or podium and adjust the gooseneck to optimal speaking angle.
-
Connect to Mixer/Interface: Plug the XLR cable into a compatible audio system with phantom power.
-
Set Switch Function: Use programmable options (toggle, push-to-talk, push-to-mute) to suit your application.
-
Use Visual Cues: Monitor the built-in LED for mic status.
-
Ready to Go: Speak with confidence—ideal for lectures, worship, broadcast, and panels.
