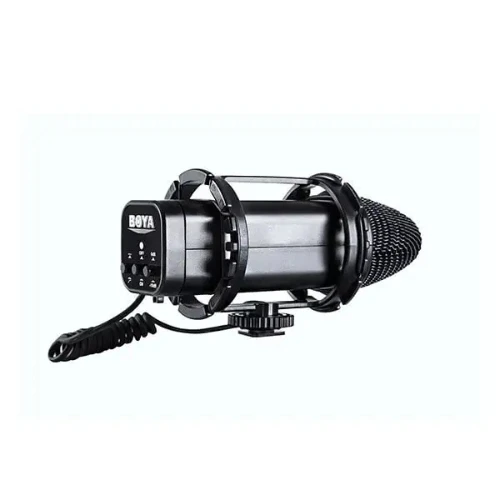

The Boya BY-V02 is a compact stereo X/Y condenser microphone designed to deliver broadcast-quality audio for DSLR cameras, camcorders, and audio recorders. Its lightweight design and integrated shock mount make it an ideal choice for videographers, vloggers, and content creators seeking to enhance their audio recording capabilities.
Key Features:
-
Stereo X/Y Condenser Microphone: Captures natural and immersive stereo sound, enhancing the audio quality of your recordings.
-
Broadcast Sound Quality: Delivers clear and professional audio, suitable for various recording applications.
-
Adjustable Sound Attenuation: Features a -10dB and 0dB switch to accommodate different recording environments and prevent distortion.
-
Two-Step High Pass Filter: Offers Flat and 80Hz settings to reduce low-frequency noise and rumble.
-
Integrated Shock Mount: Minimizes handling noise and vibrations, ensuring clean audio capture.
-
Rugged Reinforced ABS Construction: Provides durability while maintaining a lightweight profile.
-
3.5mm Mini-Jack Output: Ensures compatibility with a wide range of cameras and audio devices.
-
Cold Shoe Mount with 1/4" Thread: Allows easy attachment to cameras and tripods.
Specifications:
-
Microphone Type: Stereo Condenser Microphone
-
Polar Pattern: Super-Cardioid
-
Frequency Response: 40Hz – 20kHz
-
Sensitivity: -33dB ± 3dB (0dB=1V/Pa at 1kHz)
-
Signal-to-Noise Ratio: ≥76dB
-
Output Impedance: -10dB, 0dB
-
Power Requirement: 2 x 1.5V AAA batteries (not included)
-
Connector: 3.5mm stereo mini-jack
-
Low-Cut Filter: Flat/80Hz
-
Dimensions (L x H x D): 151 x 65 x 73 mm
-
Net Weight: 135g
What's in the Box:
-
1 x Boya BY-V02 Microphone
-
1 x Dead Kitten Windscreen
-
1 x Integrated Shock Mount
-
1 x Carrying Bag
-
1 x User Manual
Usage Instructions:
-

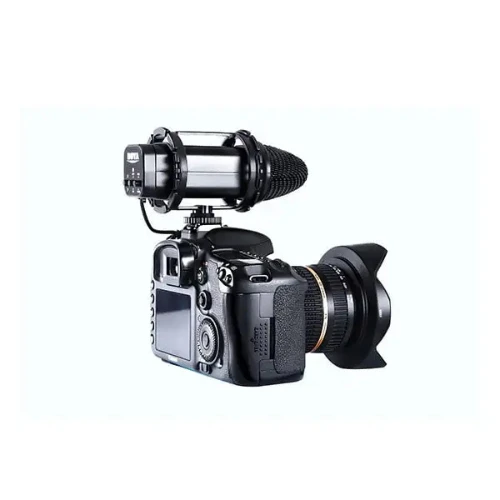

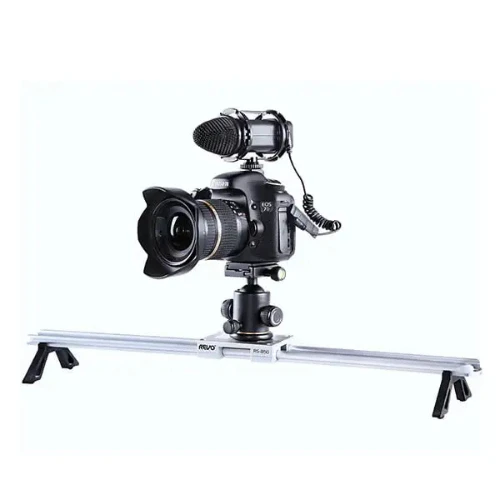

Mount the Microphone: Attach the BY-V02 to your camera's hot shoe or a tripod using the cold shoe mount with 1/4" thread.
-
Connect to Device: Plug the 3.5mm mini-jack into your camera, camcorder, or audio recorder's microphone input.
-
Insert Batteries: Install 2 x 1.5V AAA batteries into the microphone to power it on.
-

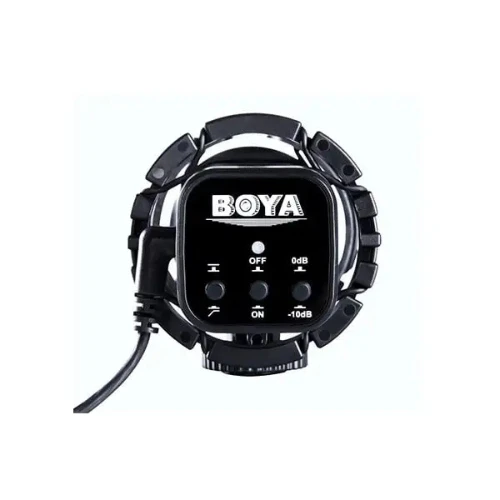

Adjust Settings: Use the sound attenuation switch (-10dB/0dB) and the high pass filter (Flat/80Hz) to suit your recording environment.
-
Position the Microphone: Ensure the microphone is directed towards the sound source for optimal audio capture.
-
Start Recording: Begin recording with enhanced audio quality.
The Boya BY-V02 offers an affordable solution for capturing high-quality stereo audio, making it an excellent choice for various recording applications.
