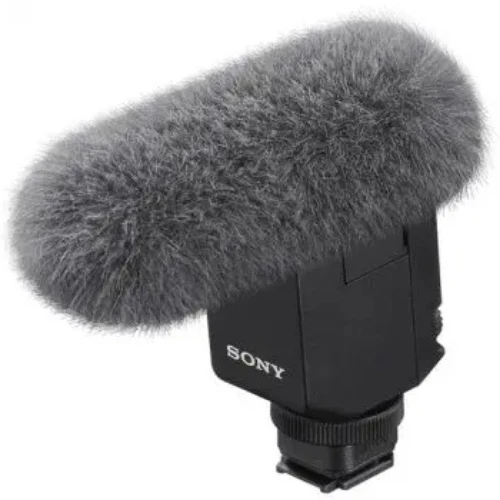

Sony ECM-B10 Compact Camera-Mount Digital Shotgun Microphone

The Sony ECM-B10 is a compact, lightweight digital shotgun microphone designed to deliver high-quality audio for content creators, vloggers, and videographers. Its super cardioid polar pattern effectively captures sound from the front while minimizing background noise.

Equipped with three selectable pickup patterns—super directional, unidirectional, and omnidirectional—the ECM-B10 offers versatility for various recording scenarios. The microphone features digital signal processing with noise-cut and low-cut filters, ensuring clear audio capture in diverse environments.

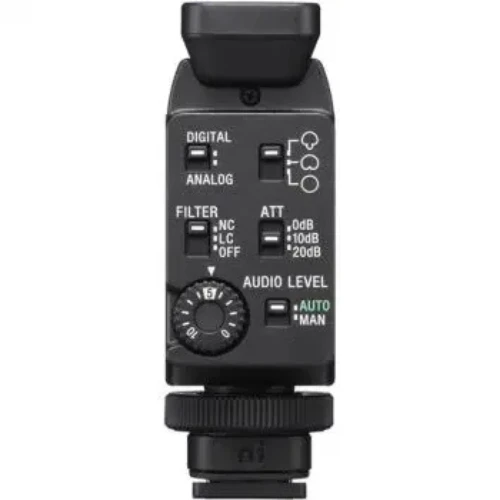

The rear panel controls, including a digital/analog switch, low-cut filter, auto-level control, and a variable -20/0 dB pad, provide intuitive adjustments for optimal sound quality. Its compact design ensures compatibility with a wide range of cameras, including Sony's Multi Interface Shoe-equipped models.

Whether you're recording interviews, vlogs, or environmental sounds, the Sony ECM-B10 delivers professional-grade audio in a portable package.

🔧 Product Features

• Three Pickup Patterns: Super directional, unidirectional, and omnidirectional for versatile recording.

• Digital Signal Processing: Includes noise-cut and low-cut filters for clear audio capture.

• Rear Panel Controls: Digital/analog switch, low-cut filter, auto-level control, and variable -20/0 dB pad for intuitive adjustments.

• Compact Design: Lightweight and portable, ideal for on-the-go recording.

• Multi Interface Shoe Compatibility: Designed for seamless integration with Sony cameras equipped with MI Shoe.

🛠️ Product Specifications

• Polar Pattern: Super cardioid

• Frequency Response: 20 Hz – 20 kHz

• Output Impedance: 2.2 kΩ

• Signal-to-Noise Ratio: 79 dB

• Maximum SPL: 120 dB SPL

• Sensitivity: -26 dB (50 mV @ 94 dB SPL)

• Power Supply: Draws power from connected devices via MI Shoe

• Dimensions: 80 mm (L) x 21.6 mm (W) x 21.6 mm (H)

• Weight: Approximately 39 g

📦 What's in the Box

• Sony ECM-B10 Microphone

• Foam Windshield

• User Manual
